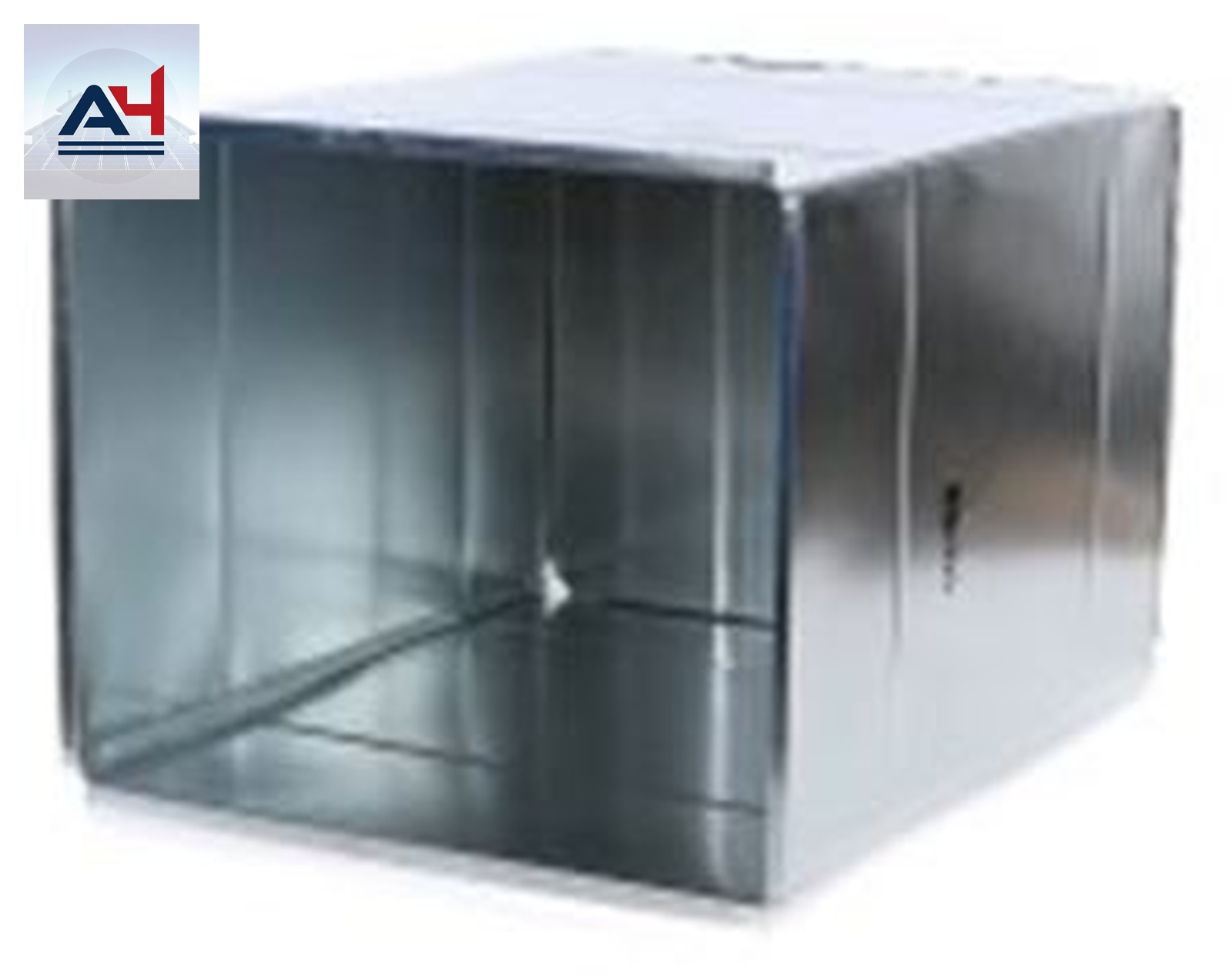

The RHPL162047 is a large-format rectangular plenum box designed for the primary stage of air distribution in HVAC systems. Measuring 16-1/2 inches by 20 inches with a substantial length of 47 inches, this plenum acts as the main pressurized chamber directly attached to the supply or return side of an air handler or furnace. It provides the necessary volume and surface area to attach multiple branch ducts via take-offs, ensuring even air distribution throughout the building.
Constructed from 28-gauge galvanized steel, this plenum offers a reliable balance of structural strength and workability. The galvanized material is essential for protecting the interior and exterior surfaces from rust caused by temperature fluctuations and condensation. Its significant 47-inch height allows for versatility in installation, as it can be field-trimmed to fit specific ceiling clearances or modified to accommodate various trunk line orientations and heights.
This plenum is a fundamental component for HVAC contractors building out a customized duct system. Given its dimensions, it is typically used in residential or light commercial applications where a high volume of air must be managed. Proper installation involves securing the plenum to the HVAC unit with professional-grade gaskets and fasteners, followed by thorough sealing of all joints to maintain optimal system static pressure and energy efficiency.
