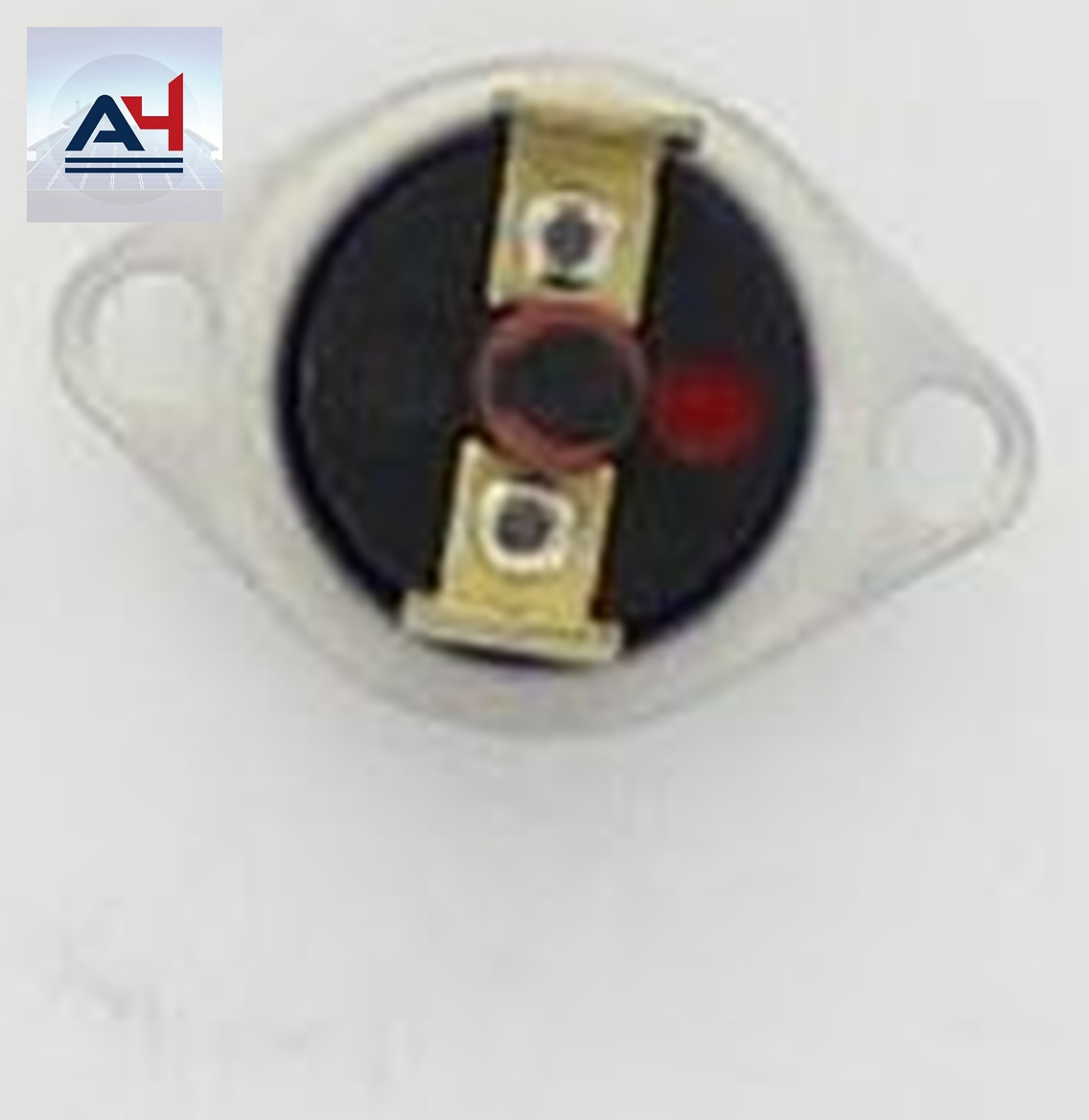

This Reznor 196949 manual reset limit switch serves as a vital safety device for specific Reznor UDAP-100 and UDAS-100 unit heater models, including the 45, 60, and 75 series. It is an indispensable part for HVAC/R professionals and facility managers focused on maintaining the safe operation of their heating systems. This switch is designed to protect the unit from potential damage caused by excessive temperatures.
The limit switch monitors the internal temperature of the unit heater, and if it exceeds a safe operating threshold, it will automatically shut off the burner. The "manual reset" feature requires a technician to physically reset the switch after the fault condition has been addressed, ensuring that the underlying issue is investigated before the unit is restarted. This prevents continuous cycling under unsafe conditions.
When replacing a limit switch, it is crucial to match the part number and ensure compatibility with your specific Reznor UDAP-100 or UDAS-100 unit heater model. Proper installation of this safety component is essential for protecting both the equipment and the occupants. Always consult the unit's service manual for correct wiring and mounting procedures.
