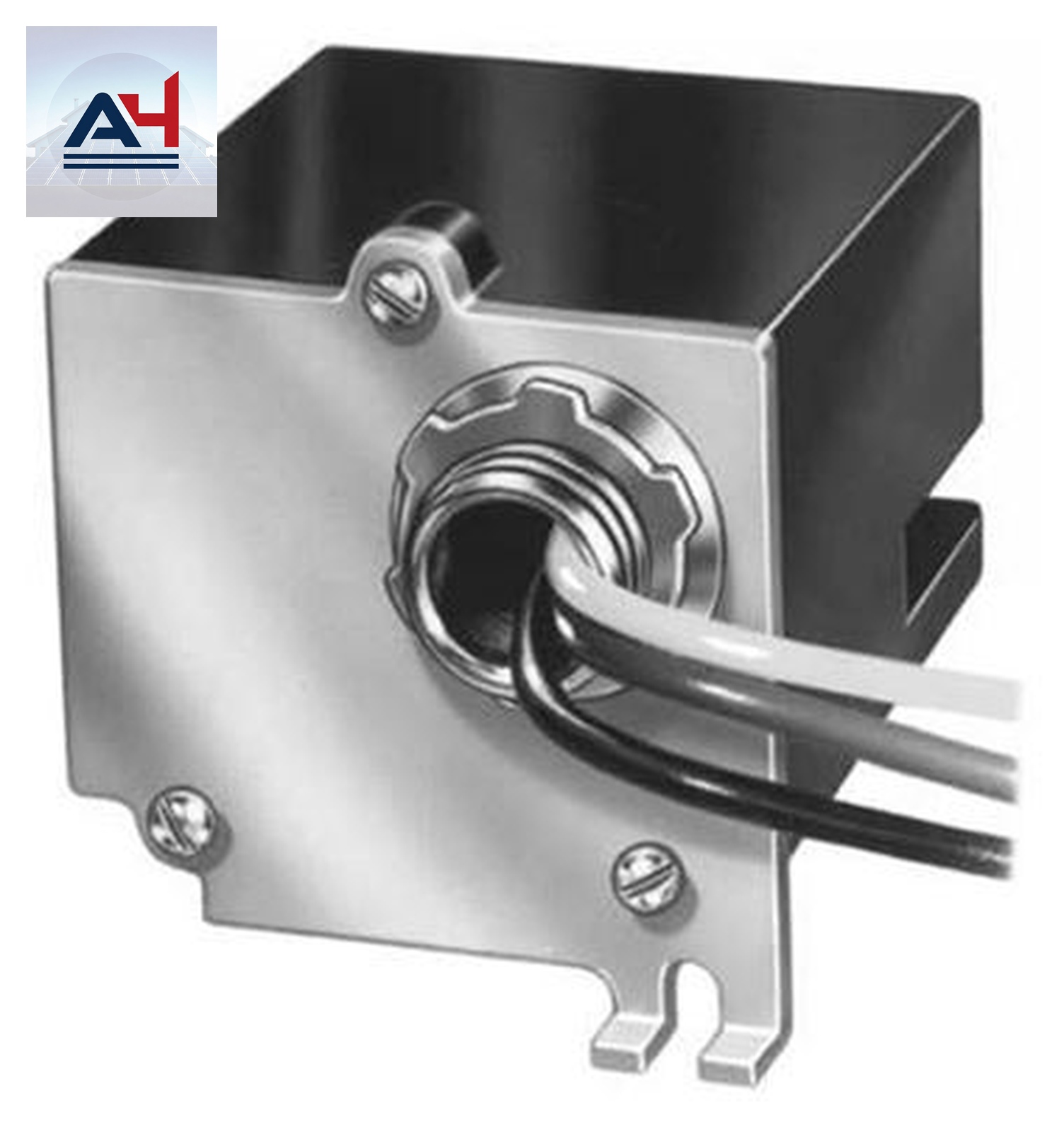

The Resideo R8225D1003/U general purpose relay is a crucial component for managing electrical circuits in various HVAC/R equipment. Designed for 24V systems, it provides dependable switching capabilities for motors, compressors, fans, and other controlled devices. This relay is suitable for both new installations and as a replacement part in commercial and residential heating, ventilation, and air conditioning setups, ensuring proper system operation and safety.
Selecting the correct relay involves matching its electrical specifications, such as voltage and switch configuration, to the specific requirements of your HVAC/R system. The DPST (Double-Pole, Single-Throw) normally open switch configuration of the R8225D1003/U makes it versatile for applications requiring simultaneous control of two separate circuits or higher current loads. HVAC technicians and facility managers will find this relay essential for maintaining precise control over system functions.
Before installation, it is vital to verify compatibility with your existing equipment's model, electrical requirements, and desired control logic. Consulting manufacturer documentation or a qualified HVAC/R technician is recommended to ensure correct application and adherence to local electrical codes. Proper installation of this Resideo relay contributes to the longevity and efficient performance of your overall HVAC/R system.
