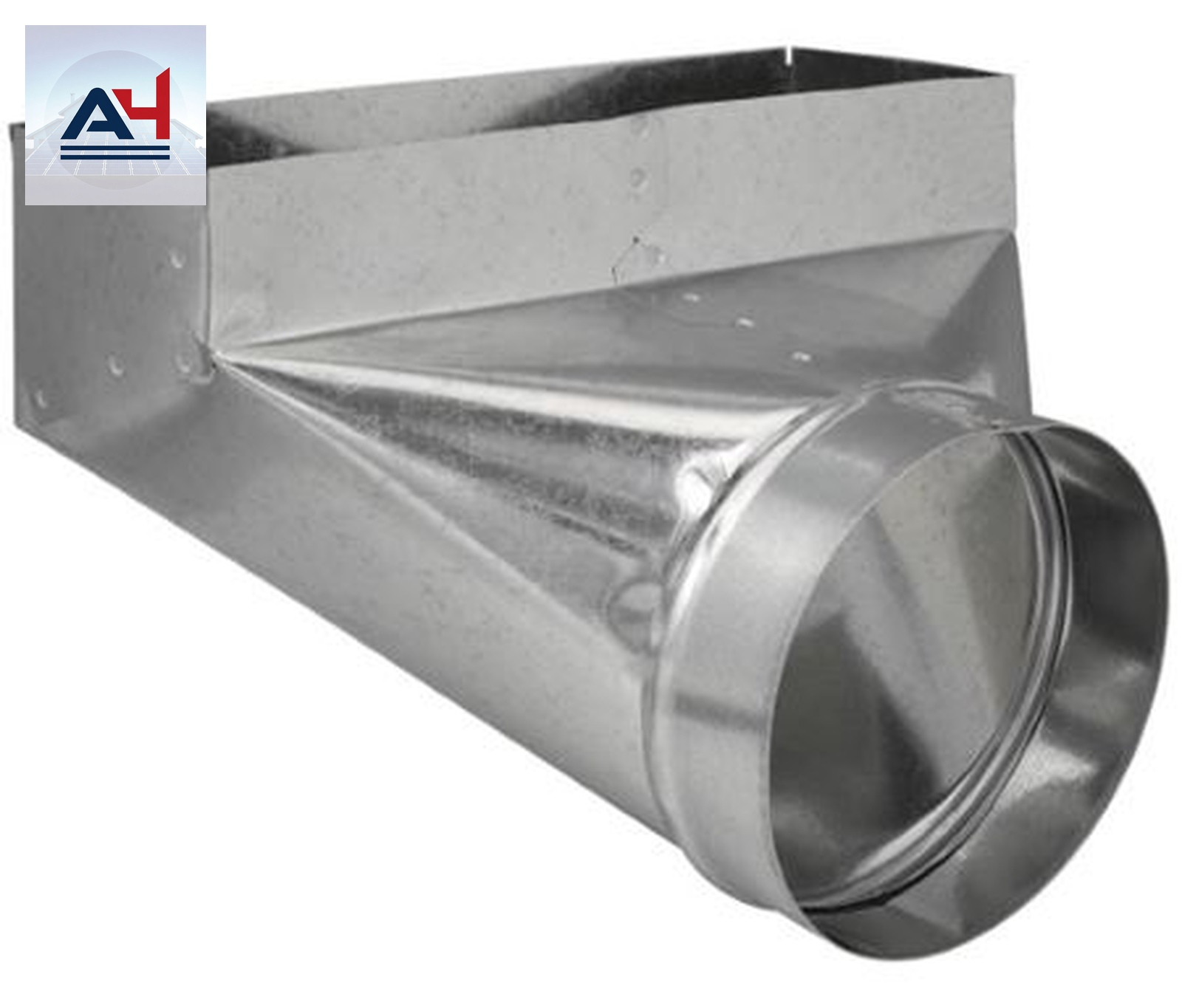

The GV0627 is a specialized 90-degree angle boot designed to facilitate the transition between round branch ducting and rectangular floor or wall registers. This fitting features a 6-inch round collar that connects to standard supply piping, making a sharp 90-degree turn into a 4×12-inch rectangular opening. This configuration is most commonly utilized in residential HVAC installations where the duct run must terminate at a right angle to the register face.
Fabricated from 30-gauge galvanized steel, this angle boot provides a lightweight yet resilient solution for air distribution. The galvanized coating protects the metal from moisture-induced corrosion, which is vital for maintaining the cleanliness and integrity of the air path over many years of service. Its precision-formed dimensions ensure a snug fit with standard 4×12-inch grilles and registers, reducing the need for extensive field modifications during the rough-in phase.
When selecting this boot, HVAC technicians should confirm the orientation of the 90-degree bend relative to the floor joists or wall studs. The boot should be securely fastened to the framing to prevent movement and potential air leakage. For maximum energy efficiency, the connection points between the round duct and the boot collar should be sealed with high-quality mastic or foil tape according to local building codes.
