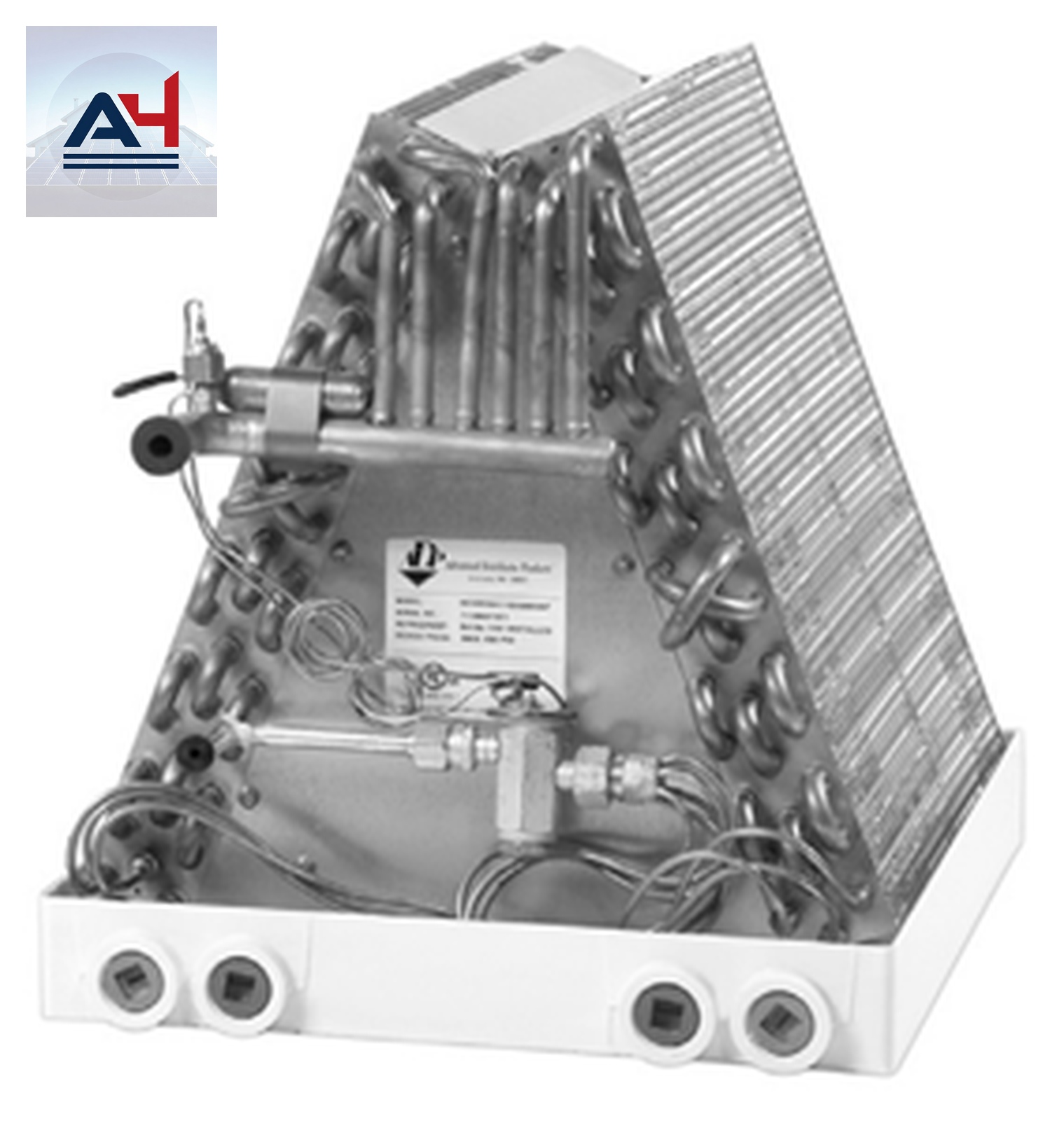

The ADP HE30924A140A0000A is a high-performance 2 Ton uncased residential evaporator coil engineered for upflow and downflow configurations. Rated at a nominal capacity of 24,000 BTU/hr with an airflow rating of 800 CFM, this indoor A-coil section connects seamlessly to matching outdoor air conditioning or heat pump condensing units. Its uncased format makes it an excellent choice for slide-in replacement loops inside existing sheet metal plenums.
This multi-position coil features a high-efficiency copper slab configuration designed to maximize thermal heat transfer and optimize system efficiency. It is configured with convenient right-hand refrigerant sweat connections, giving installers flexibility during line set routing in tight mechanical spaces. The system comes equipped with a precision refrigerant metering device and is fully compatible with standard R-410A split cooling networks.
HVAC service technicians select this 14-inch wide ADP coil when performing legacy system restorations or routine changeouts over narrow furnace cabinets. The compact design ensures a reliable fit within industry-standard dimensions while providing consistent moisture removal and cooling relief. Prior to final brazing, verify that your liquid and suction line diameters match the factory-installed sweat connections and confirm physical plenum clearances.
